Description

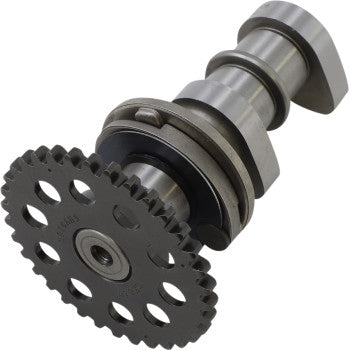

Hot Cams Stage 1 Exhaust Camshaft For DRZ400
- Stage 1 is designed for low end torque
- Adds a 5%-10% power gain
- Designed and dyno proven in the USA
- Manufactured by utilizing state of the art valvetrain software
- CNC machined from 8620 billet, case-hardened steel for an exact fit and lobe profile
- Notes
- Engineered to be drop-in cams, that use stock valve springs (unless otherwise noted).
- Select cams feature Hot Cams Improved Throttle Design (ITR) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end.
- For dual cam engine.
00-25 DRZ400
Camshaft Type: Stage 1 Exhaust
Material: CNC-machined from 8620 billet, case-hardened steel
Exhaust Lift: 8.64 mm
Exhaust Duration (at 1mm): 231°
Exhaust Center: 102°
Exhaust Valve Lash: 0.200 mm
Decompression Mechanism: Supplied / included (auto-decompression)
Valve Springs: Uses stock DR-Z400 valve springs (Note: if installing in an LTZ400 quad, DR-Z400 valve springs are required)
Recommended Pairing: Best results are achieved when paired with the Hot Cams Stage 1 Intake Camshaft
